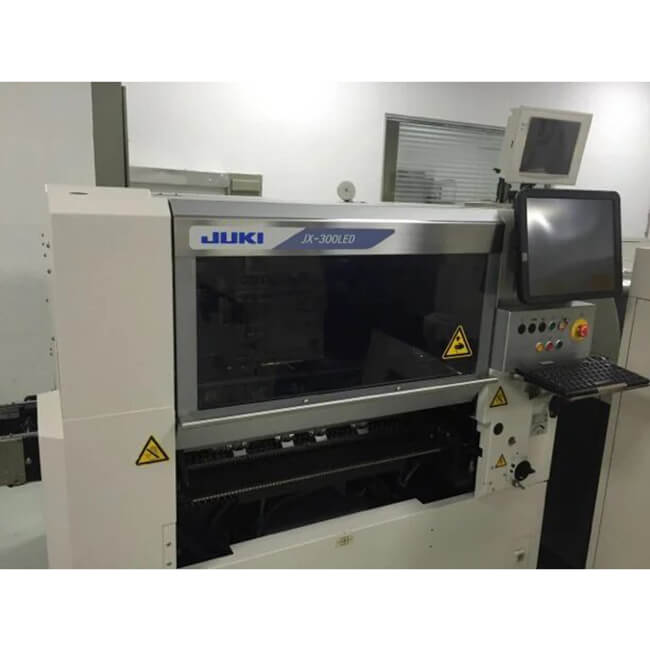

JUKI JX-300LED Pick and Place Machine
Machine Details:

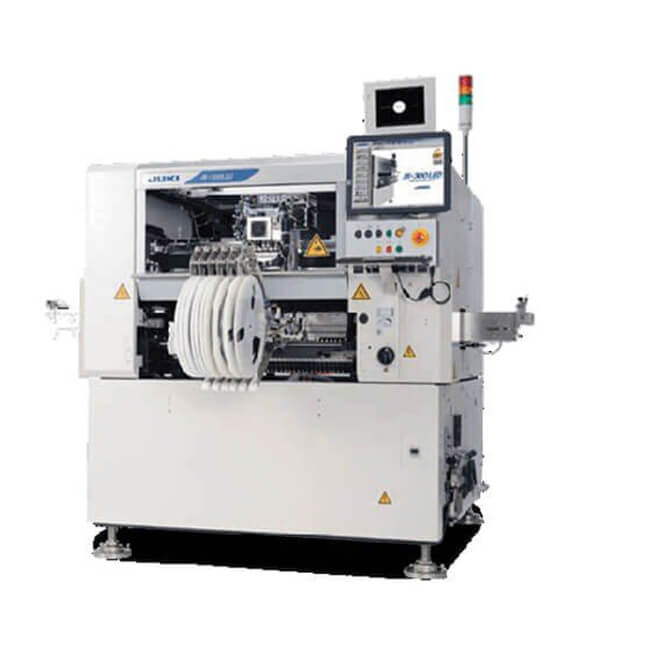

JUKI JX-300 LED Flexible LED Mounter
The new JX-300 LED Mounter offers a flexible placement system specially designed for LED lighting products and mid- to large LCD display backlights.
It can support ultra-long boards up to 1,500mm and JUKI laser centering for high speed, high accuracy placement offers the best in the industry.
Ultra-Long Board Support
High Speed
High Accuracy
Support Ultra-Long Boards up-to 1,500mm
High-speed clamping system reduces transport time for long and super-long boards.
Laser Centering for High Speed, High Accuracy
Head moves directly from the pick position to the placement position.
Wide Variety of Special Nozzles for LEDs
Nozzles specifically designed for LEDs.
Unique Features for Flexibility
Accurate Placement even without fiducial marks.
BOARD SIZE
Standard Specification:
50 X 50 ~ 1,200 X 360mm
Longer Sized PWB:
50 X 50 ~ 1,500 X 360mm
COMPONENT SPECS
Component Height:6mm/12mm
Component Size:Laser Recognition:0603(0201) ~ 33.5mm
FEEDER INPUTS:Max.40 in case of 8mm tape
PLACEMENT SPECS
Placement Speed (chip):
• Optimum: 23,300CPH
• IPC9850: 18,300 CPH
Placement Accuracy:
±0.05mm(Cpk≧1)
