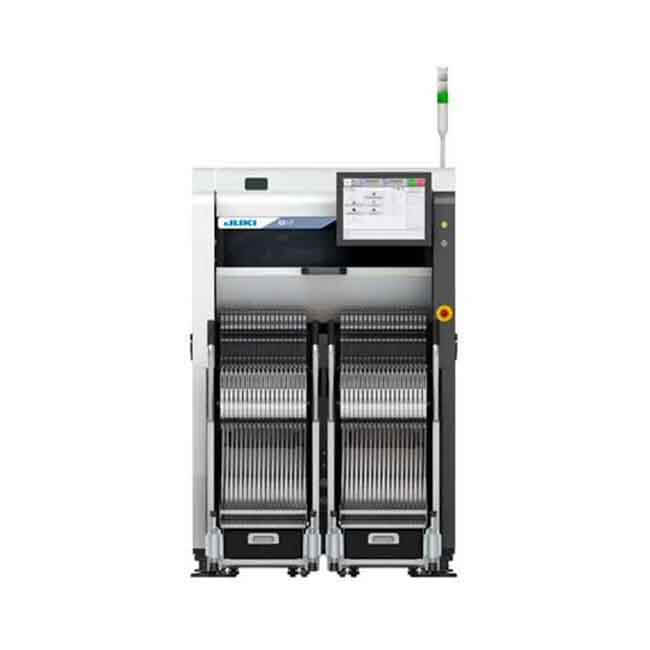

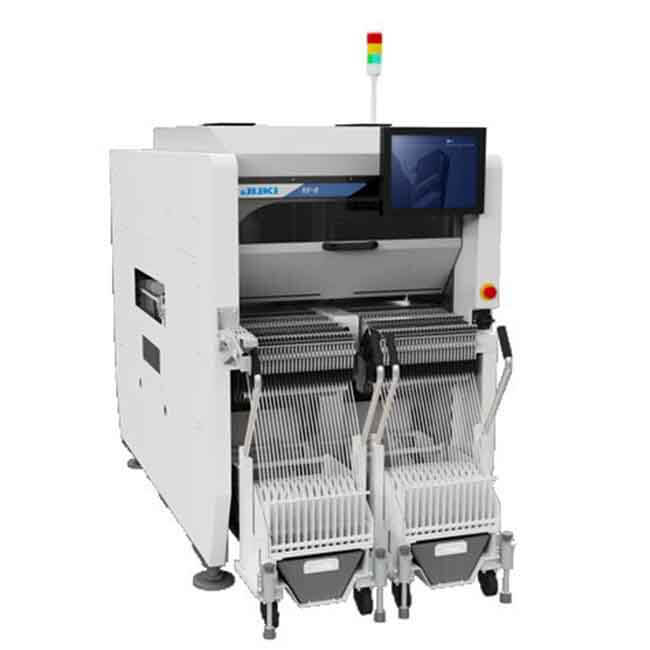

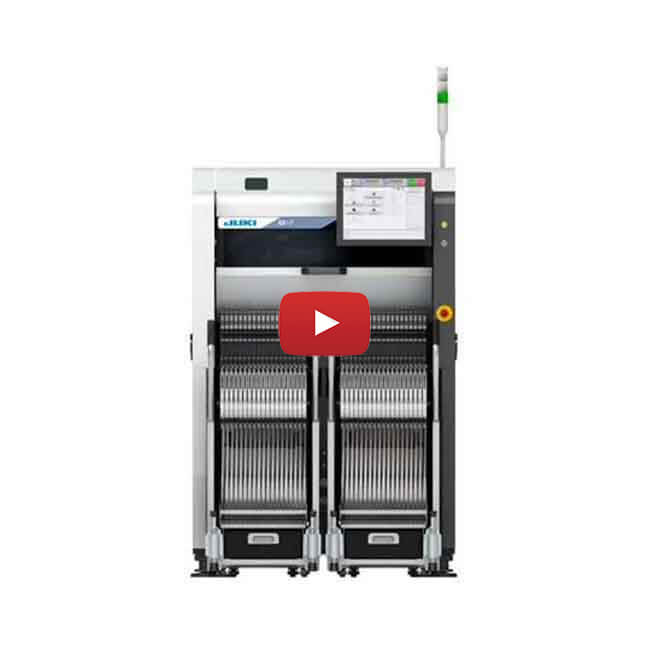

JUKI RX-7 Pick and Place Machine
Machine Details:
JUKI RX-7 Modular Pick and Place Machine,Applicable Components: 0402 (01005) ~ 5mm,Board size:50 X 50 ~ 360 X 450mm,Feeder inputs:max 76,placement capacity:75,000CPH
BOARD SIZE
Single Lane Conveyor:
50 X 50 ~ 360 X 450mm
Dual Lane Conveyor:
50 X 50 ~ 360 X 250mm
COMPONENT SPECS
Component Height: 3mm
Component Size:
0402 (01005) ~ 5mm
FEEDER INPUTS
Max.76 using dual lane 8mm tape
PLACEMENT SPECS
Placement Speed (chip):
Chip Optimum: 75,000CPH
Placement Accuracy:
Laser Recognition: ±40μm (Cpk≧1)
High-Speed Compact modular mounter RX-7 |
||||
|
|
P16×P16 |
P16×P8 |
P8×P8 |
Board size |
Single lane conveyer |
50×50~510mm*1 x 450mm |
||
|
Dual lane conveyer |
50×50~510mm*1 x 250mm |
||
Component height |
3mm |
3mm (P16 nozzle head) |
10.5mm |
|
10.5mm P8 nozzle head) |
||||
Component size |
03015*2~5mm x 5mm |
03015*2~ |
0603~ |
|
0603~ |
||||
Placement speed (Optimum) chip |
CHIP |
75,000CPH |
54,900 CPH |
34,800 CPH |
IC |
- |
6,400 CPH*3 |
12,800 CPH |
|
Placement accuracy |
CHIP |
±0.04mm(Cpk≧1) |
||
IC |
- |
±0.04mm |
||
Component loading quantity |
38 (76 in case of 8mm tape) *4 |
