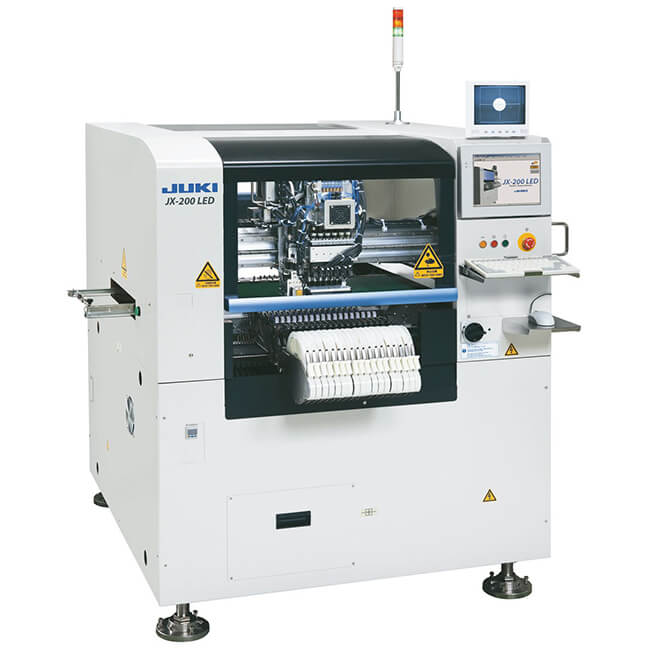

JUKI JX-200 Pick and Place Machine
Machine Details:
Placement Speed:
Chip : 18,050CPH(0.199Sec./chip/Optimum)/13,900CPH(IPC9850)
■ IC : 4,400CPH
■ Component size
Laser recognition : 0603 ※2 ~□33.5mm
Vision recognition Standard camera : □3mm~□33.5mm
High-resolution camera (option) : 1.0×0.5mm~□24.0mm
■ Placement accuracy
Laser recognition : ±0.05mm (±3σ)
Vision recognition : ±0.04mm
■ high-speed and high precision placement technology
■ Superior Versatility
■ High Quality Placement Technology
■ Easy and Compact
■ Longer sized PWB in X axis (up to 800 mm × 250 mm) (option)
※2 HMS is required when a 0603 component is placed. (option)
Board size | Min.50 × 50 ~ Max.800*1 × 250mm | ||
Component height | 12mm | ○ | |
20mm | ○ | ||
Component size | Laser recognition | 0603*2 ~ □33.5mm | |
Visionrecognition | Standard camera | □3mm ~ □33.5mm | |
High-resolution camera (option) | 1.0 × 0.5mm ~ □24.0mm | ||
Placement speed | Chip | Optimum | 0.199Sec./chip (18,050 CPH) |
IPC9850 | 13,900CPH | ||
IC | 4,400CPH | ||
Placement accuracy | Laser recognition | ±0.05mm (±3σ) | |
Vision recognition | ±0.04mm | ||
Feeder inputs | Max.60 on 8mmT/F |
HMS is required when a 0603 component is placed. (option)
