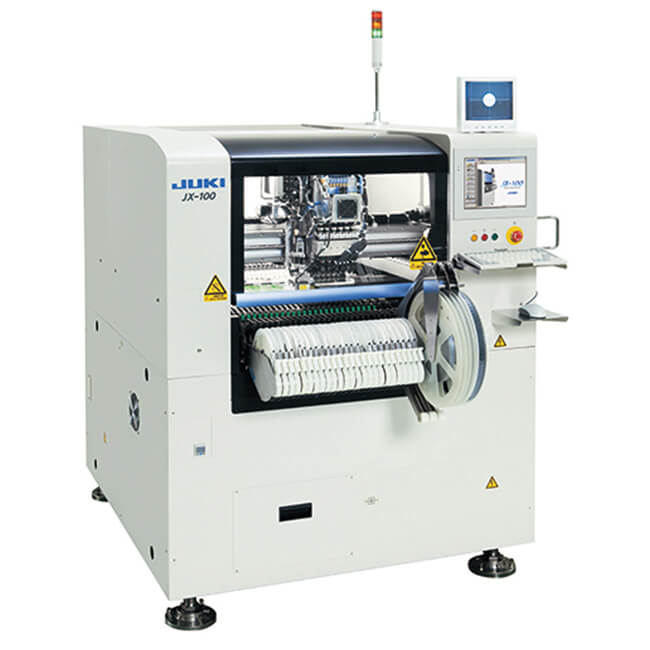

JUKI JX-100 Pick and Place Machine
Machine Details:
The machine combines high production capacity with its versatility at a reasonable cost. This system is best suited for a company starting out in surface mount. It is both easy to operate and compact, resulting in a smooth installation.
■ Superior Cost Performance
19,300CPH (Laser centering/Optimum) (0.187 sec/chip)
15,300CPH (Laser centering/IPC9850)
■ Superior Versatility
■ Reliable Quality
■ Easy Operation
Board size | Min. 50 × 50 ~ Max. 330 × 250 mm | ||
Component size | Min. 0603mm(0201 Inch) ~ Max. □33.5mm | ||
Component centering device | Laser centering (LNC60) | ||
Placement speed (chip) | Chip | Optimum | 0.187Sec./chip(19,300CPH) |
IPC9850 | 15,300CP |
Single Gantry; 1 Head Per Gantry
Achieves high productivity while still being light and compact.
6 Nozzles per Gantry
Able to place chips from 0603 mm (0201 inch) to 33.5 mm.
Nozzles for LED Components
Low cost placement solution for notebook PCs, LCD monitors and wide variety of lighting equipment.
High Accuracy Low Noise Ball Screw Drive
High Accuracy Laser Align Component Centering
LNC60 laser centering
