  • Hitachi GXH-1S Pick and Place Machine

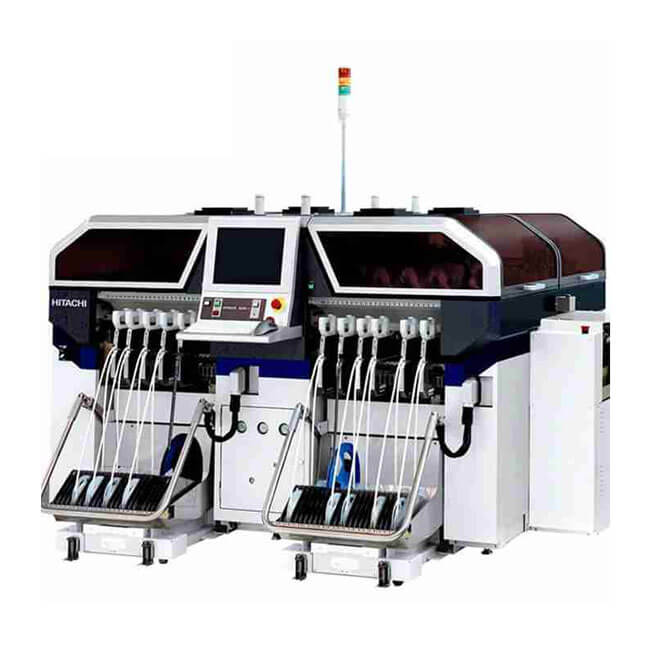

Hitachi GXH-1S Pick and Place Machine

Hitachi GXH-1S Pick and Place Machine

  • Hitachi GXH-1S Pick and Place Machine
  • High production
  • Real-life performance
  • Component range: 0201 ~ 44 * 44mm
  • Product description: Hitachi GXH-1S Pick and Place Machine, Real-life performance, Component range: 0201 ~ 44 * 44mm
  • INQUIRY

Hitachi GXH-1S Pick and Place Machine

Machine Details:


Extreme high-speed placement with flexibility to handle larger components.

Two independent work cells (stages) allow simultaneous assembly of two boards.
All X and Y axes are operated by linear motors.
Each Y axis has two motors for enhanced stability and repeatibility.
Four placement heads have up to 12 nozzles each.
On-the-fly recognition of all components.
A line sensor on each head checks for component presence, orientation, and correct thickness.
Unique board conveyor system moves both rails for optimum board postioning during production.
No more "fixed rails"

Hitachi GXH-1S parameters
High precision long life decomposition energy: 0.0048um, speed: 2m / sec maximum acceleration of 3G.
Dress accuracy: +/- 0.05mm, special correction: +/- 0.035mm
12 nozzles, 12 parts as long as the shuttle flash once know, Camera recognition time, 2m / s,
Large field of view 0201 ~ 44 * 44mm parts are recognized once, up to 55 * 55mm

connect to 100 * 26 * 25.4mm

Walking flash understanding, high-brightness lighting, awareness correction, video capture time: 5u / sec
The use of a double hanging material feeder can fly two different materials can be linked to

high-speed high-precision feeding, driven by a servo motor,
speed: 0.08 seconds / a (feeding pitch is 2,4mm)

Accuracy: +/- 0.05mm (8mm * 2mmpitch 0201)
Feeder models of simplification, paper, tape for feeding, feed pitch variable
A head has 12 suction nozzles, a nozzle automatically replace the system, each line when the actual production needs change, the system automatically replace the nozzle,

the change line faster, (production does not replace the nozzle)

Heterosexual head 3 nozzle is in the production according to the size of the parts to replace the nozzle
Double track within the device, the same table can be placed two boards (circuit board width below 215mm)
Part Database Automatically builds new part data for your system in just 1-5 minutes

Widely used high-speed placement head 0402 ~ □ 44mm
High-speed / multi-functional placement head non-stop replacement placement head module
Smart Tape Feeder / Multi-Layer Tray Feeder with Non-Stop Feeder Module
High production
Real-life performance and stability of the direct drive placement head
Linear motor drive 4-axis 4-head structure; non-stop one-time identification (up to 12 parts)
