Hanwha SM471 Plus Pick and Place Machine
Machine Details:

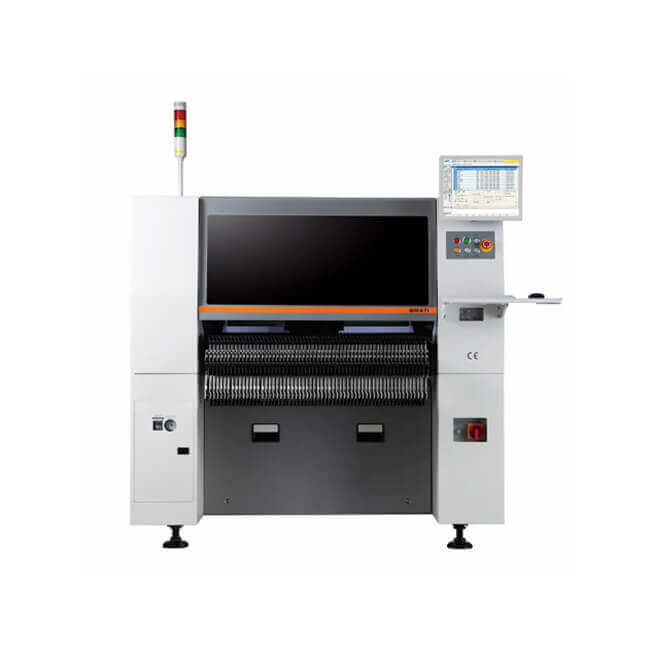

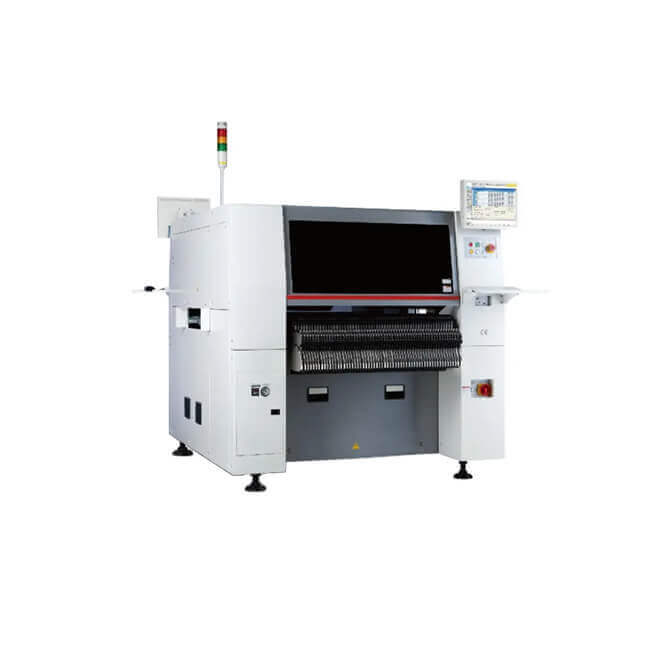

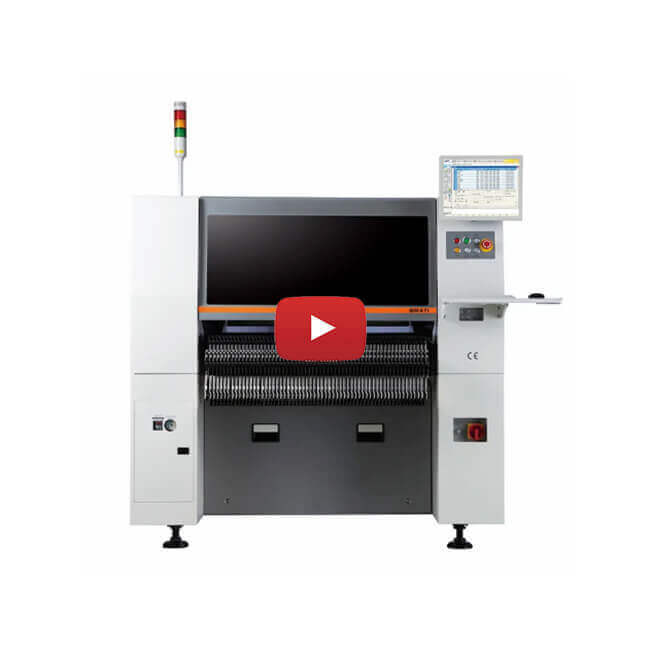

Hanwha SM471 Plus pick and place machine
The Hanwha SM471 Plus pick and place machine is a high-speed mounting mahcine equipped with 10 axes for each mount head and dual-boom.
high-performance newer flying camera placement machine that delivers world-class top speeds of 78,000 CPH.
0402(01005")~14mm(h12mm) can be basically corresponding, and through the application of high-speed.
High-precision electric feeder, improve the actual productivity and placement quality.
Specifications |
SAMSUNG SM471 Plus Pick and Place Machine |
Alignment |
Flying Vision |
Number of Spindles |
10 Spindles x 2 Gantry |
Placement Speed |
78,000 CPH(Optimum) |
Placement Accuracy |
±40㎛@±3σ/Chip ±50㎛@±3σ/QFP |
Component Range |
Chip 0402 ~ 14mm(H 12mm) IC, Connector(Lead Pitch 0.4mm) BGA, CSP(Ball Pitch 0.4mm) |
Board Dimension(mm) |
L510xW460(Standard) L610xW460(Option) |
Feeder Capacity |
120ea / 112ea(Docking Cart) (Based on 8mm) |
Power |
AC200 / 208 / 220 / 240 / 380 / 415V (50/60Hz, 3Phase)Max. 5.0kVA |
Air Consumption |
0.5 ~ 0.7MPa(5 ~ 7kgf/cm2) |
Mass |
Approx. 1,820kg |
External Dimension(mm) |
1,650(L) x 1,690(D) x 1,485(H) |

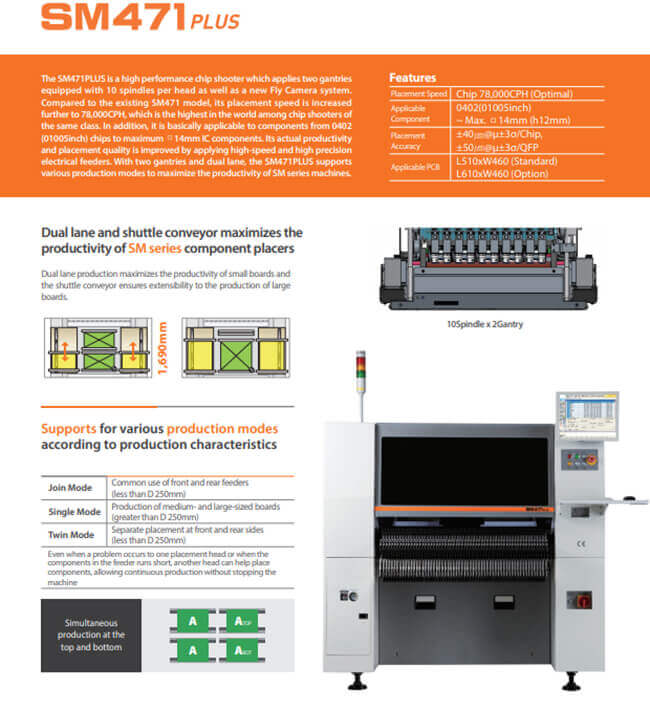

PCB Loading Time of “ZERO” Maximizes actual productivity by minimizing the PCB transfer time by
adopting a first-in-first-out type shuttle inlet conveyor. In addition, it supports various placement
modes according to production characteristics.
Electrically Driven High Speed and High Accuracy

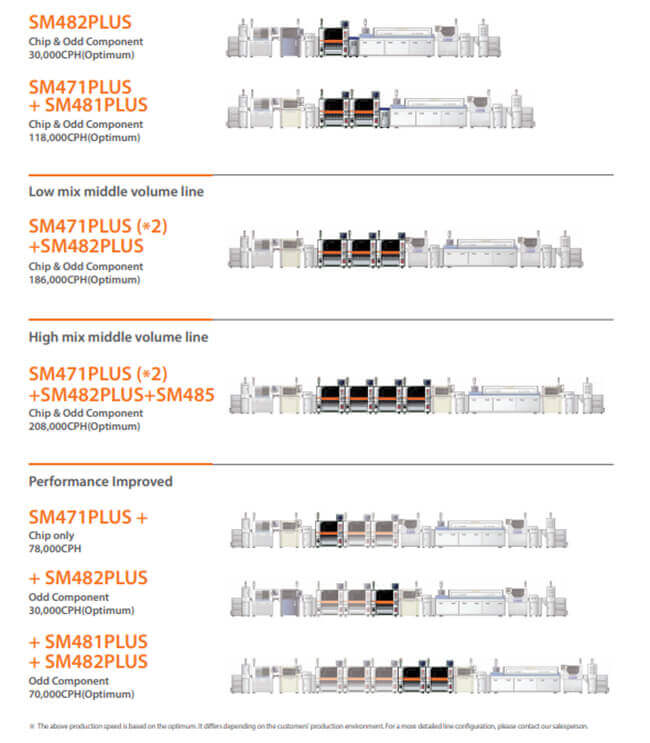

Specifications |
SAMSUNG SMT pick and place machine |
||
Model Name |
SM471plus |
SM481plus |
SM482plus |
Alignment |
Flying Vision |
Flying Vision+stage vision |
Flying Vision+stage vision |
Spindles |
10 Spindles × 2 Gantries |
10 Spindles × 1 Gantry |
6 Spindles × 1 Gantry |
Placement Speed |
78,000CPH(Optimum) |
40,000CPH(Optimum) |
30,000CPH(Optimum) |
Placement Accuracy |
±40μm@μ±3σ |
±40μm@μ±3σ |
±40μm@μ±3σ |
Applicable Parts |
0402 ~ 14mm(H 12mm) |
0402 ~ 42mm(H 15mm) |
0402 ~ 55mm(H 15mm) |
Applicable PCB(L × W) |
Max. 510 × 460(Standard) |
Max. 460 × 400(Standard) |
Max. 460 × 400(Standard) |
Max. 610 × 460(Option) |
Max. 1500 × 460(Option) |
Max. 1200 × 510(Option) |
|
Dimension(L.D.H) |
1650×1690×1458 |
1650×1680×1530 |
1650×1680×1458 |
Mass(Kg) |
Approx. 1820 |
Approx. 1655 |
Approx. 1600 |
