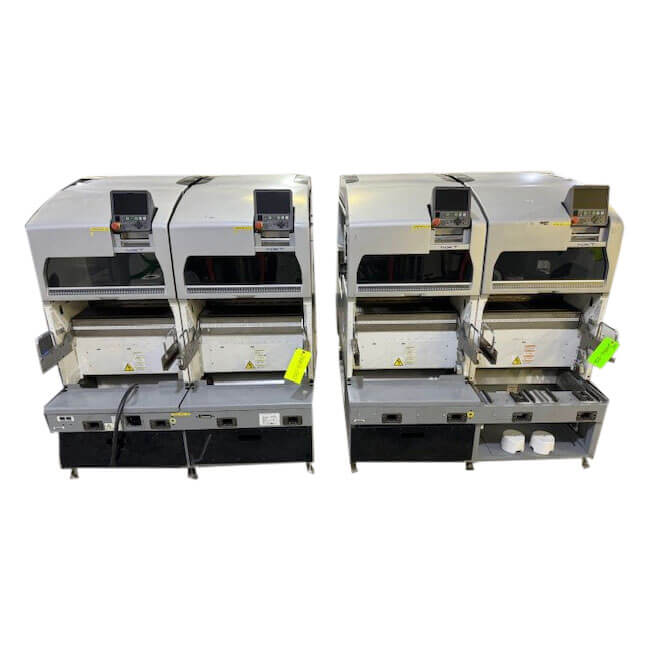

Fuji NXTⅡ Pick and Place Machine
Machine Details:
M3 II / M6 II: 48mm x 48mm ~ 510mm x 534mm (double handling rail)
48mm x 48mm ~ 610mm x 534mm (single transport track)
M6 IISP: 48mm x 48mm ~ 510mm x 520mm (double handling rail)
48mm x 48mm ~ 610mm x 520mm (single handling track)
Component Type:
M3 II: MAX 20 (8mm tape conversion)
M6 II / M6 IISP: MAX 45 (8mm tape conversion)
Mounting accuracy:
H12S / H08 / H04 / OF: ± 0.05mm (3 sigma) cpk≥1.00
H01 / H02 / G04: ± 0.03mm (3 sigma) cpk≥1.00
GL: ± 0.10mm (3 sigma) cpk≥1.00
Production capacity:
H04: 6,500 cph; H01: 4,200 cph; G04: 6,800 cph; OF: M3 II not mountable /
M6 II 3000 cph; GL: 16,363 dph (0.22 sec / dot))
H04: 6,000 cph; H01: 3,500 cph; G04: 5,100 cph; OF: 2,800 cph,
GL: 16,363 dph (0.22 sec / dot))
Object components:Material feeder: 4≤ element width≤15mm (6≤ tube width≤18mm),
15≤ element width≤32mm (18≤ tube width≤36mm)
Tray unit: 135.9X322.6mm (JEDEC standard) (Tray unit M), 276X330mm, 138X330mm (Tray unit LT)JUKI RS-1R pick and place machine, JUKI RX-7R pick and place machine, Hanwha SM481 Plus Pick and Place Machine, Hanwha SM482 Plus Pick and Place Machine, SMT pick and place machine, JUKI Pick and place Machine, Samsung Pick and Place Machine, Yamaha Pick and Place Machine, Panasonic Pick and Place Machine, FUJI Pick and Place Machine, Siemens Pick and Place Machine.
